Dynamic Tool Synthesis in Production AI Agents: Architecture, AST Validation, Sandboxed Execution, and Lifecycle Governance

Standard tool-augmented AI agents rely on pre-configured, static API registries. Developers define a fixed set of JSON schemas, OpenAPI specifications, or Python wrapper functions at build time, and the language model selects from this catalog during execution. While sufficient for narrow, deterministic tasks, static registries encounter severe operational bottlenecks in open-ended production environments:

1. Context Window Saturation: Injecting dozens or hundreds of static tool schemas directly into system prompts consumes significant token budgets, increases time-to-first-token (TTFT), and degrades model reasoning via attention dilution.
2. Algorithmic Inflexibility: Pre-defined APIs cannot anticipate arbitrary data transformations, complex statistical aggregations, or specialized multi-step parsing operations required across diverse runtime requests.
3. High Re-Execution Costs: Forcing an agent to repeatedly execute multi-turn LLM reasoning loops for recurring algorithmic subtasks inflates inference spend and introduces non-deterministic failure points.

To overcome these constraints, production agent architectures are adopting Dynamic Tool Synthesis (DTS). Instead of relying exclusively on static API registries, agents autonomously synthesize, validate, execute, and persist new modular software tools at runtime. By caching reusable executable code rather than transient natural language responses, dynamic tool synthesis establishes a functional cache that drastically improves execution speed, guarantees deterministic subtask execution, and slashes serving costs.

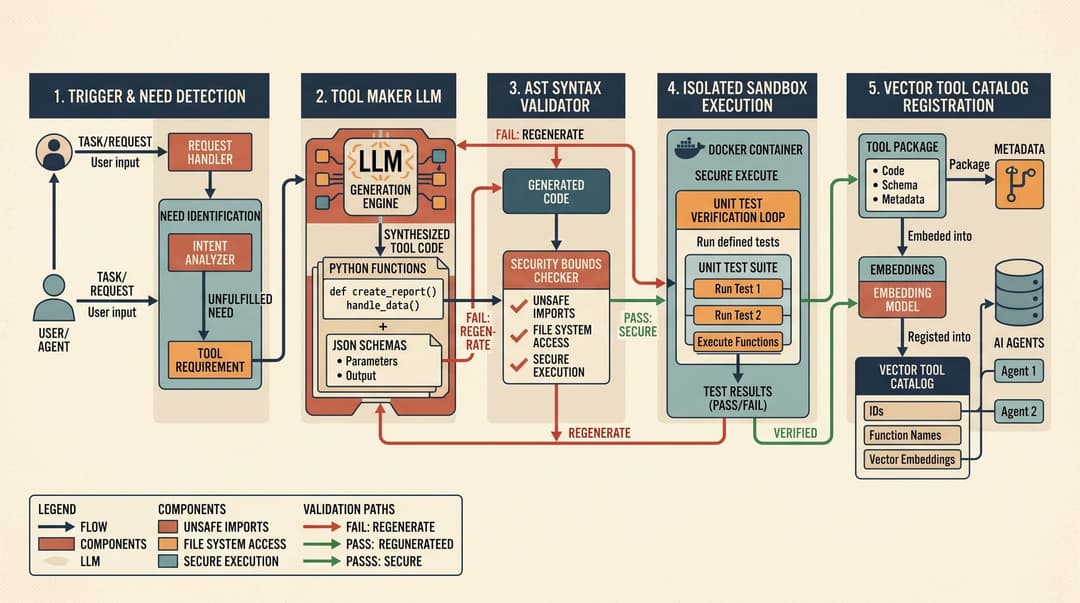

1. The Tool Synthesis Pipeline

Dynamic tool synthesis structures the generation and lifecycle of ad-hoc tools into a closed-loop engineering pipeline. Grounded in research from LATM (Large Language Models as Tool Makers) and CREATOR, the architecture separates abstract code generation from downstream invocation.

+-----------------------------------------------------------------------------------------+
|                               Agent Orchestration Core                                  |
|                                                                                         |
|  +--------------------+   Missing Primitive Detected    +----------------------------+  |
|  |     User / Task    | ------------------------------> |      Tool Maker LLM        |  |
|  |     Objective      |                                 | (Frontier Reasoning Model) |  |
|  +--------------------+                                 +--------------+-------------+  |
|                                                                        |                |
|                                                 Synthesizes Code,      |                |
|                                                 Docstrings, & Tests    v                |
|  +--------------------+       Rectification Feedback    +----------------------------+  |
|  | Isolated Sandbox   | <------------------------------ |   AST Static Code Guard    |  |
|  | (Wasm / MicroVM)   | ------------------------------> | (Banned Nodes / Whitelist) |  |
|  +---------+----------+      Unit Tests Passed          +----------------------------+  |
|            |                                                                            |
|            v                                                                            |
|  +--------------------+         Semantic Query          +----------------------------+  |
|  | Tool Index Vector  | <------------------------------ |       Tool User LLM        |  |
|  | Storage (pgvector) | ------------------------------> |  (Lightweight / Fast SLM)  |  |
|  +--------------------+      Inject Dynamic Schema      +----------------------------+  |
+-----------------------------------------------------------------------------------------+

Triggering Conditions: When to Synthesize

An agent should not invoke a synthesis pipeline for every ad-hoc request. Synthesis introduces a one-time latency and compute overhead. In production, trigger filters evaluate incoming tasks against three criteria:

• Tool Absence: The task cannot be solved using existing registered tools in the vector catalog or API gateway.
• Repetition Potential: The operation represents a generic, parameterized transformation (e.g., parsing a specific log format, calculating statistical distributions across heterogeneous JSON payloads) likely to recur across subsequent turns or sessions.
• Algorithmic Complexity: The calculation requires precise deterministic logic (such as graph traversal, cryptographic hashing, or large array manipulation) where native LLM autoregressive token generation is prone to arithmetic drift or hallucination.

The Tool-Maker vs. Tool-User Division of Labor

As demonstrated in the LATM framework (Cai et al., 2023), dynamic tool synthesis achieves optimal cost efficiency by decoupling the Tool Maker from the Tool User:

• Tool Maker (Tier 1 Model): A frontier reasoning model (e.g., Claude 3.7 Sonnet, GPT-4o) receives task requirements, writes Python implementation code, formulates structured docstrings, and generates comprehensive unit test suites.
• Tool User (Tier 2 Model): A lightweight, low-latency model (e.g., 8B-parameter open weights or fast commercial endpoints) retrieves the newly registered tool schema and invokes it with task-specific arguments.

This division amortizes the frontier model's generation cost across hundreds of inexpensive small-model invocations.

2. Static Analysis and AST Security Validation

Allowing an LLM to generate and execute executable code introduces direct code execution risks. Before synthesized code is sent to an execution engine, it must pass through deterministic Abstract Syntax Tree (AST) validation.

AST Node Filtering and Whitelisting

A dedicated static analyzer inspects the Python AST to enforce strict architectural constraints:

import ast

class SecurityASTVisitor(ast.NodeVisitor):
    BANNED_NODES = {
        ast.Import, ast.ImportFrom,  # Handled via explicit module whitelisting
        ast.Global, ast.Nonlocal,
    }

    ALLOWED_MODULES = {"math", "json", "re", "datetime", "typing", "collections"}
    BANNED_BUILTINS = {"eval", "exec", "compile", "globals", "locals", "open", "input", "__import__"}

    def __init__(self):
        self.errors = []

    def visit_Call(self, node):
        if isinstance(node.func, ast.Name) and node.func.id in self.BANNED_BUILTINS:
            self.errors.append(f"Forbidden builtin call: {node.func.id}")
        self.generic_visit(node)

    def visit_Import(self, node):
        for alias in node.names:
            if alias.name not in self.ALLOWED_MODULES:
                self.errors.append(f"Forbidden import: {alias.name}")

    def visit_ImportFrom(self, node):
        if node.module not in self.ALLOWED_MODULES:
            self.errors.append(f"Forbidden import module: {node.module}")

Enforcing Structural Bounds

In addition to blocking unsafe system calls, the AST analyzer validates:

1. Single Entry Point: The synthesized module must define exactly one primary exported function matching the generated schema name.
2. Type Annotations: All function arguments and return signatures must include valid Python type hints (str, int, float, list, dict, typing.Optional) to enable automatic JSON Schema generation.
3. Recursion and Complexity Limits: AST analyzers measure cyclomatic complexity and disallow direct unconstrained recursion to prevent accidental stack overflows during execution.

3. Sandboxed Verification and Execution Rectification

Static analysis ensures syntactical hygiene, but cannot verify whether synthesized code runs correctly without exceptions or meets its intended specification. Dynamic tool synthesis requires isolated sandboxing and automated unit test verification.

Automated Unit Test Synthesis

When the Tool Maker LLM generates a function, it simultaneously outputs a companion test suite containing 3 to 5 deterministic test assertions, covering:

• Standard expected input/output pairs.
• Boundary conditions (empty lists, negative values, zero division).
• Malformed input handling (asserting that type mismatches raise handled exceptions).

Sandboxed Execution Environments

Executing untrusted code requires hardened sandbox isolation. Production stacks select between three primary runtime technologies:

| Sandbox Technology | Cold-Start Latency | Per-Instance Memory | Isolation Mechanism | Dependency Compatibility | | :--- | :--- | :--- | :--- | :--- | | WebAssembly / WASI (Wasmtime, Pyodide) | < 2 ms | 5-15 MB | Memory-safe software fault isolation (SFI) | Pure Python & precompiled C-extensions | | User-Space Kernel (gVisor) | 50-150 ms | 30-60 MB | Sentry interceptor emulating Linux syscalls | 100% Linux system compatibility | | MicroVMs (Firecracker) | 5-30 ms (snapshot) | 10-30 MB | Hardware-level KVM hypervisor isolation | 100% Linux system & kernel features |

For pure data manipulation and algorithmic parsing, WebAssembly environments like Pyodide running inside a locked V8 or Wasmtime runtime provide the lowest latency and resource footprint.

Execution-Driven Rectification Loops

If test execution fails inside the sandbox, the system does not fail the overall user request. Following the CREATOR framework (Qian et al., 2023), the runtime extracts the execution traceback, error message, and failed assertion input, packaging them into a structured prompt for the Tool Maker model:

{
  "status": "verification_failed",
  "function_name": "parse_nested_json_metrics",
  "error_type": "KeyError",
  "error_message": "'timestamp' not found in row 0",
  "traceback": "File '<sandbox>', line 12, in parse_nested_json_metrics\n    return [item['timestamp'] for item in data['records']]",
  "failed_test_input": {"data": {"records": [{"val": 42}]}}
}

The model applies a localized patch and re-submits the code to the sandbox. In empirical benchmarks across tool generation frameworks, a bounded 2-to-3 retry rectification loop resolves over 85% of initial syntax and indexing faults.

4. Vector Tool Catalog and Progressive Disclosure

Once synthesized and verified, the new tool must be indexed for future discovery. Storing hundreds of dynamically generated functions directly in the system prompt would defeat the token-efficiency goals of dynamic tool synthesis. Production architectures employ Progressive Disclosure backed by vector retrieval.

Hierarchical Semantic Indexing

Each synthesized tool is serialized into a catalog record containing:

• Function Metadata: Name, version hash, input argument JSON Schema, return type.
• Natural Language Docstring: Concise summary of what the function computes and when it should be called.
• Vector Embedding: Dense vector representation of the function's description and trigger conditions generated via an embedding model (e.g., text-embedding-3-small, BGE-M3).
• Executable Bytecode / Source: The validated Python source code stored in persistent storage or a document store.

These records are indexed in a vector store such as pgvector or Qdrant.

Dynamic Tool Retrieval and Schema Injection

When a user submits a query, the agent orchestrator conducts a two-stage tool resolution process:

1. Semantic Filter: The orchestrator embeds the user query and retrieves the top-$k$ ($k \in [3, 5]$) most relevant tools from the vector index.
2. Schema Ingestion: Only the selected $k$ tool schemas are formatted into standard OpenAI/Anthropic tool-calling JSON structures and injected into the active prompt context.
3. Execution Dispatch: When the model emits a tool call corresponding to a dynamic tool, the orchestrator retrieves the compiled function from storage and executes it inside the local sandbox.

+------------------+     Query: "Calculate moving average of server metrics"
|    User Prompt   | --------------------------------------------------------+
+------------------+                                                         |
                                                                             v
+-------------------------------------------------------------+     +------------------+
|                   Vector Tool Catalog (pgvector)            |     |  Semantic Match  |
|                                                             | --> |  (Score: 0.91)   |
|  [Tool: moving_average_calculator] (Dense Vector)           |     +--------+---------+
|  [Tool: parse_jwt_claims]          (Dense Vector)           |              |
|  [Tool: markdown_table_formatter]  (Dense Vector)           |              | Injects Schema Only
+-------------------------------------------------------------+              v
                                                                    +------------------+
                                                                    |  Agent LLM Call  |
                                                                    | (Active Context) |
                                                                    +------------------+

As demonstrated in CRAFT (Customizing LLMs by Creating and Retrieving Toolsets) and Voyager, this progressive disclosure mechanism scales an agent's operational capability to thousands of specialized tools without expanding the context window baseline.

Semantic Deduplication

To prevent tool sprawl (where slight variations of identical functions like calculate_mean vs. compute_average flood the registry), the catalog enforces semantic deduplication:

• When a newly synthesized tool yields a cosine similarity $> 0.92$ with an existing catalog entry, the orchestrator triggers an AST equivalence check.
• If the logic is redundant, the newly synthesized tool is discarded, and the existing tool's metadata is updated with the new task aliases.

5. Lifecycle Governance, Telemetry, and Invalidation

Dynamic tools must not remain in the production runtime indefinitely without supervision. Like cached objects in distributed systems, dynamically synthesized code requires strict lifecycle governance.

Execution Telemetry and Metrics

The runtime tracks telemetry per dynamic tool:

• Invocation Count: Total number of successful calls.
• Execution Failure Rate: Ratio of unhandled exceptions during execution.
• Runtime Latency: P50, P95, and P99 execution duration.
• Last Invoked Timestamp: Recency tracking for cache eviction.

LRU Eviction and Time-to-Live (TTL) Policies

Dynamic tools are categorized into two retention tiers:

• Session-Scoped Tools: Ephemeral tools synthesized for one-off data parsing within a single user session. These are assigned a short TTL (e.g., 2 hours) and automatically garbage-collected upon session termination.
• Persistent Enterprise Tools: Reusable tools that demonstrate high invocation frequency ($> 20$ calls) and zero unhandled exceptions across multiple distinct sessions. These are promoted to the permanent workspace catalog.
• LRU Eviction: If the catalog exceeds storage capacity or embedding index thresholds, tools with low invocation counts and high elapsed time since last use are pruned.

Secret and Credential Boundaries

Synthesized code must never contain hardcoded API keys, database credentials, or secret tokens. If a synthesized tool requires access to an external authenticated service, credentials must be injected dynamically at runtime via a mediating security proxy:

1. The tool accepts a sanitized resource identifier (e.g., account_id, endpoint_url).
2. The runtime sandbox invokes an egress broker that attaches short-lived authorization headers (e.g., OAuth tokens, mTLS certificates) outside the Python execution scope.
3. Direct socket creation and raw egress connections remain blocked at the sandbox perimeter.

6. Serving Economics and Latency Analysis

Dynamic tool synthesis alters the cost-latency profile of agentic workflows by replacing continuous token-based reasoning with local bytecode execution.

Cost Amortization Curve

Consider a complex multi-step data parsing and statistical transformation task requiring 1,500 reasoning tokens per invocation:

• Pure LLM Generation (Tier 1 Model): 1,500 tokens at $15.00 per million output tokens = $0.0225 per run.
• Dynamic Tool Synthesis (LATM Approach):
• One-time synthesis & verification (Tool Maker): 2,000 input/output tokens = $0.0300 one-off.
• Subsequent invocations (Tool User SLM + Sandbox): 150 prompt tokens + local execution = $0.0003 per run.

Cumulative Cost ($)
 1.20 |                                        / Pure Frontier LLM ($0.0225/run)
 1.00 |                                       /
 0.80 |                                      /
 0.60 |                                     /
 0.40 |                                    /
 0.20 |                        ___________/  <-- Break-Even Point (~2-3 Invocations)
 0.00 |_______________________/_____________ Dynamic Tool Synthesis ($0.030 + $0.0003/run)
      +--------------------------------------------------------
      0        10        20        30        40        50  Total Invocations

The break-even point occurs after just 2 to 3 invocations. For workflows executed hundreds of times across an enterprise, dynamic tool synthesis reduces inference expenditures by up to 90% while delivering millisecond execution times.

Summary and Implementation Checklist

For teams implementing dynamic tool synthesis in production, the key architectural requirements include:

1. Decouple Maker and User: Use a high-reasoning frontier model to author and test tools, and a fast, low-cost model to execute them.
2. Deterministic AST Validation: Reject dangerous builtins, unapproved imports, and non-type-annotated signatures before code ever executes.
3. Sandbox Isolation: Run generated code within lightweight WebAssembly runtimes or microVMs with strict memory and execution timeouts.
4. Execution-Driven Rectification: Parse sandbox tracebacks into bounded retry loops to correct initial synthesis errors.
5. Progressive Retrieval: Store tool schemas in a vector database and dynamically inject only the top-$k$ relevant tools into active context.
6. Active Lifecycle Governance: Monitor execution failure rates and apply LRU eviction to prevent tool catalog bloat.

Sources

• Cai, T., Wang, X., Ma, T., Chen, X., & Zhou, D. (2023). Large Language Models as Tool Makers. arXiv preprint arXiv:2305.17126.
• Qian, C., Han, C., Fung, Y. R., Qin, Y., Liu, Z., & Ji, H. (2023). CREATOR: Tool Creation for Disentangling Abstract and Concrete Reasoning of Large Language Models. Findings of the Association for Computational Linguistics: EMNLP 2023.
• Yuan, L., Chen, Y., & Ji, H. (2023). CRAFT: Customizing LLMs by Creating and Retrieving from Specialized Toolsets. International Conference on Learning Representations (ICLR 2024).
• Wang, G., Xie, Y., Jiang, Y., Mandlekar, A., Xiao, C., Zhu, Y., Fan, L., & Anandkumar, A. (2023). Voyager: An Open-Ended Embodied Agent with Large Language Models. arXiv preprint arXiv:2305.16291.
• WebAssembly System Interface (WASI). WASI Core Specifications.
• Bytecode Alliance. Wasmtime: Fast and Secure Runtime for WebAssembly.
• Google. gVisor Container Runtime Sandbox.
• AWS. Firecracker: Secure and Fast MicroVMs for Serverless Computing.
• pgvector. Open-Source Vector Similarity Search for PostgreSQL.
• Qdrant. Vector Database for Production AI Applications.
